Factory Cheap Heat Loss Thermal Imaging - 4-20mA Infrared industrial temperature measurement module YY-M420A – Sunshine Detail:

General Description

YY-M420A is a high performance non-contact infrared temperature measurement module with long distance.The module has the characteristics of fast response and accurate temperature measurement. The standard 2-wire access mode makes it widely used in industrial, power and other applications requiring high temperature monitoring.

Features and Benefits

Factory Pre-calibrated

2-Wire Standard(No positive or negative) + 3-Wire Additional(Communication Used)

Detected Range 0-600℃ Max

DS Ratio 20:1 Equal Fov 4°

Programmable Range Adjust From 100 ℃ To 600 ℃ (100 ℃ Stepping）

Operating Temperature Range: -10℃ To +50℃

Human-Body Detected Up To 6M Long

Applications

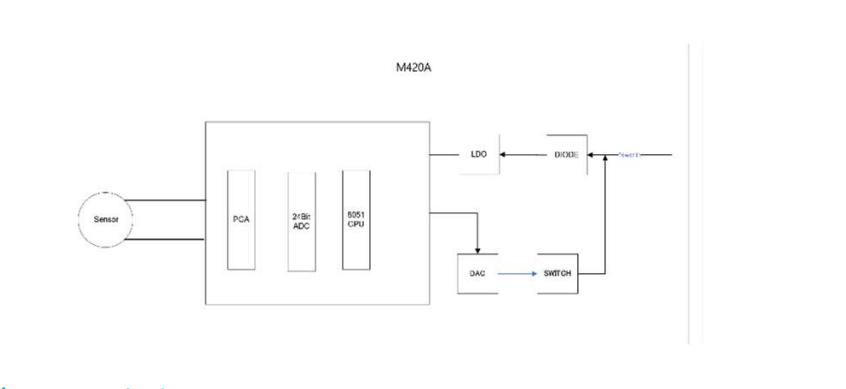

Block Diagram

asgds

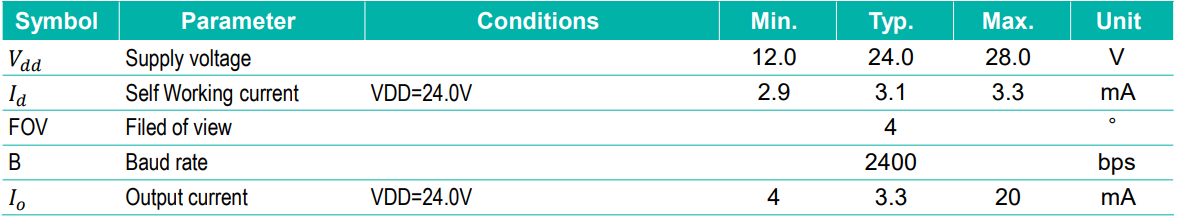

Electrical Characteristics

asfvds

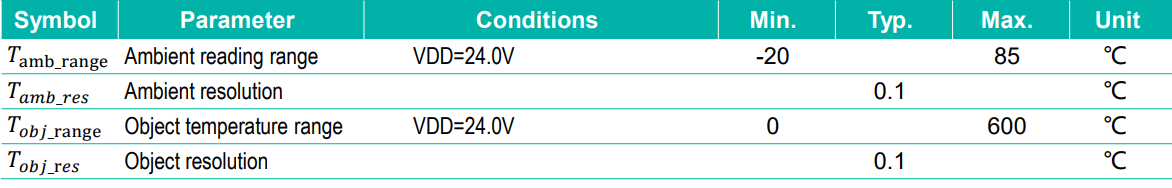

Thermometer Sensing Characteristics

sdvdgb

Others

sdvdgb

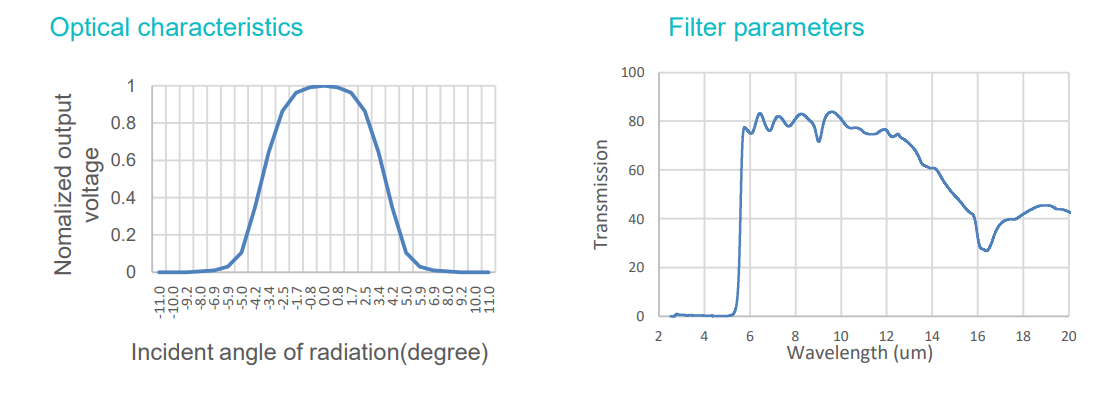

Optical Characteristics

cdscs

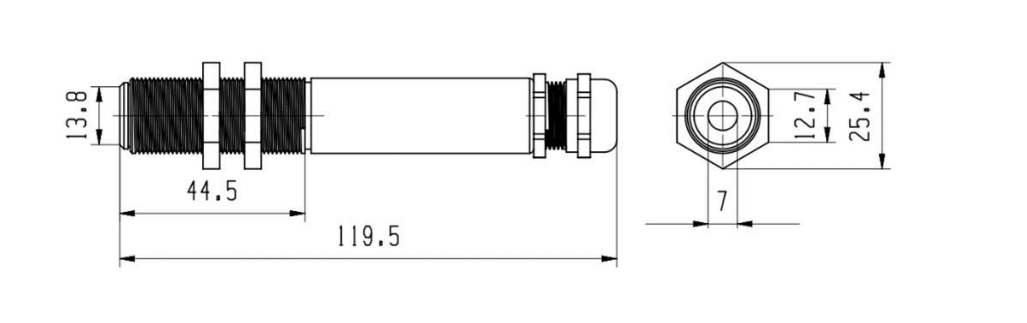

Mechanical Drawings (Unit : mm)

asgdfhg
