General Description
The SDG11DF33G1 family of integrated thermopile sensor for NDIR (Infrared gas detection) is a dual channel thermopile sensor having an output signal voltage directly proportional to the incident infrared (IR) radiation power. An infrared narrow band pass filter in front of the sensor makes the device sensitive to target gas concentration. Reference channel provides compensation for all applicable conditions. The SDG11DF33G1 comprising a new type CMOS compatible thermopile sensor chip features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. An ASIC AFE (Analog Front End) chip is integrated with the thermopile sensor, providing 1000 gain for the small voltage output of thermopile sensor. A input offset voltage is also added in the sensor input. The sensor output voltage can be directly converted by ADC, which elimates the precision Zero-Drift amplifier and DC-DC circuit. A high-precision thermistor reference chip is also integrated for ambient temperature compensation.
Features and Benefits
Integrated ASIC AFE with analog outputs, sensor gain preset to 1000
Dual channel with reference channel for compensation
Small size, high reliability, 4-pin metal housing TO-5
100 μA Low Power and 2.5 V to 5.5 V Wide Supply Voltage Range
Operating Temperature Range: −40℃ to +85℃
1.212V offset voltage for thermopile sensor
Applications
NDIR gas sensing
In door air quality
Greenhouse

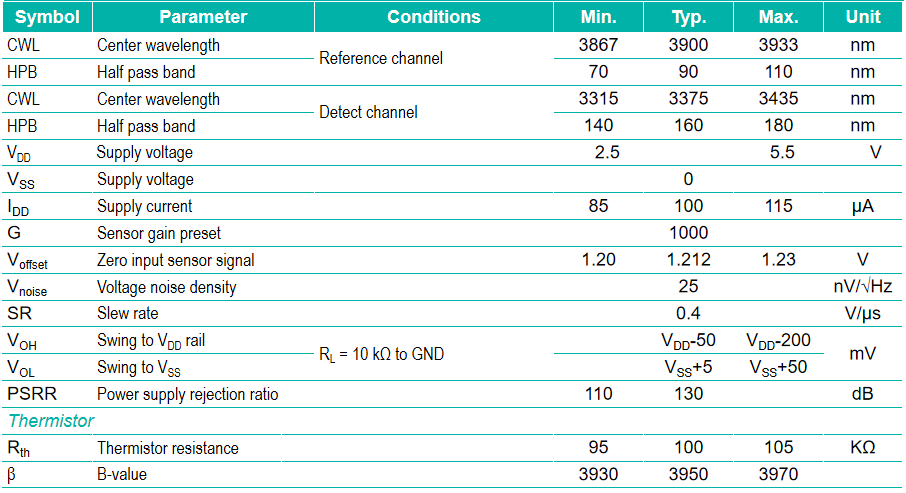

Electrical Characteristics

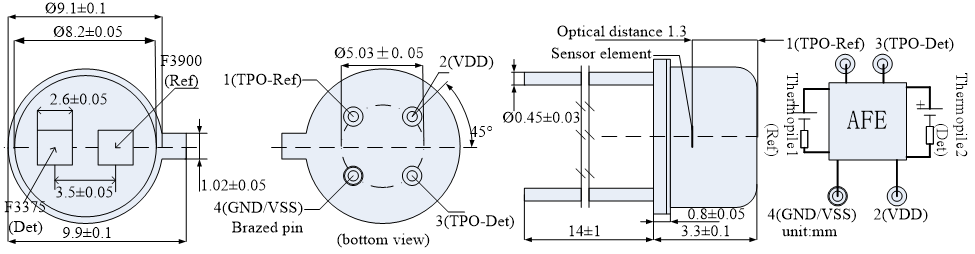

Pin Configurations & Package Outlines
