General Description

The SSG11DF33G1 family of integrated thermopile sensor for NDIR (Infrared gas detection) is a single channel thermopile sensor having an output signal voltage directly proportional to the incident infrared (IR) radiation power. An infrared narrow band pass filter in front of the sensor makes the device sensitive to target gas concentration. The SSG11DF33G1 comprising a new type CMOS compatible thermopile sensor chip features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. An ASIC AFE (Analog Front End) chip is integrated with the thermopile sensor, providing 1000 gain for the small voltage output of thermopile sensor. A input offset voltage is also added in the sensor input. The sensor output voltage can be directly converted by ADC, which elimates the precision Zero-Drift amplifier and DC-DC circuit. A high-precision thermistor reference chip is also integrated for ambient temperature compensation.

SDG11DF33 NDIR CH4 sensor detect Methane（CH4）concentration from 0 to 100% based on NDIR technology which is superior than thermal catalysis and thermal conductivity technology. It has advantages of convenient operation, accurate measurement, reliable operation, simultaneous output of voltage and serial port, and double beam design. It meets the different requirements of industrial field and laboratory measurement, and is widely used in gas detection and analysis in petrochemical, chemical, coal mine, medical and laboratory fields.
It has the features of:
NDIR technology with long lifespan and full measurement range
Internal full range temperature compensation
Diffusion sampling, stable performance
High precision
Compact size,fast response
Corrosion prevention
Easy install and less maintenance
Compatible with digital and analog voltage signal output

Features and Benefits

Integrated ASIC AFE with analog outputs, sensor gain preset to 1000

Small size, high reliability, 4-pin metal housing TO-46

Integrated thermistor temperature reference with high-precision

100 μA Low Power and 2.5 V to 5.5 V Wide Supply Voltage Range

Operating Temperature Range: −40℃ to +125℃

1.212V offset voltage for thermopile sensor

Applications

NDIR gas sensing

In door air quality

Greenhouse

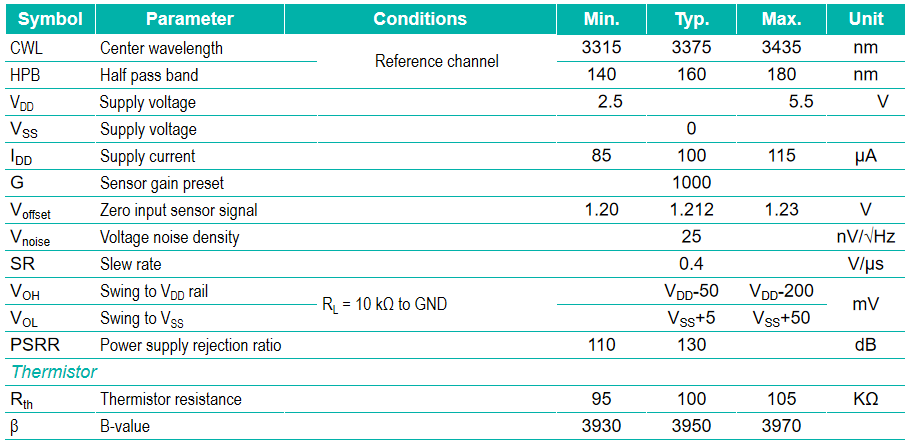

Electrical Characteristics

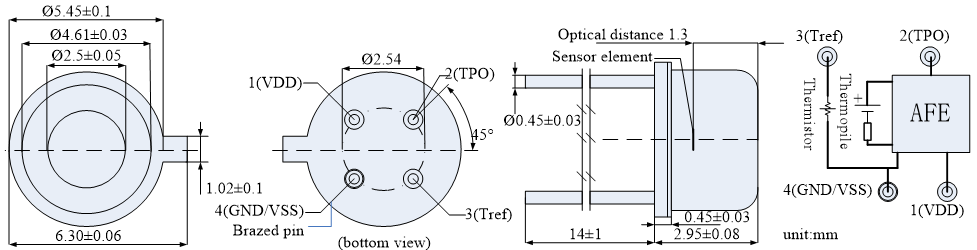

Pin Configurations & Package Outlines
